Kaichi Nr.: SZ-055-26
Brand:KaiChi
Radiator Type:Brazed Aluminum Core
Size In Inch:14-3/4 In X 27-7/8 In X 1 In
Size In MM:375mm X 708mm X PA26
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | SZ-055-26 |
| Height: | 14-3/4 In./375mm | Width: | 27-7/8 In./708mm |
| Thickness: | 1 In./26mm | Inlet Diameter: | 1-5/16 In./34mm |
| Outlet Diameter: | 1-5/16 In./34mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 11-13/16 In / 300mm | Rows: | 1 |
Applications：
| Suzuki SX4 Base L4 2.0L 2007-2013 |
| Suzuki SX4 Base L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Base Hatchback L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Crossover L4 2.0L 2010-2013 |
| Suzuki SX4 Crossover Hatchback L4 2.0L CVT 2010-2013 |
| Suzuki SX4 GL L4 2.0L 2014 |
| Suzuki SX4 GLS L4 2.0L 2014 |
| Suzuki SX4 JA L4 2.0L 2011-2013 |
| Suzuki SX4 JA L4 2.0L CVT 2011-2013 |
| Suzuki SX4 JE L4 2.0L 2012-2013 |
| Suzuki SX4 JE L4 2.0L CVT 2012-2013 |
| Suzuki SX4 JLX L4 2.0L 2008,2011 |
| Suzuki SX4 JLX L4 2.0L CVT 2011-2013 |
| Suzuki SX4 JX L4 2.0L 2008-2013 |
| Suzuki SX4 JX L4 2.0L CVT 2011-2013 |
| Suzuki SX4 LE L4 2.0L 2010-2013 |
| Suzuki SX4 LE Sedan L4 2.0L CVT 2010-2013 |
| Suzuki SX4 LE Anniversary Edition L4 2.0L 2011 |
| Suzuki SX4 Sport L4 2.0L 2007-2013 |
| Suzuki SX4 Sport Sedan L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Sport GTS L4 2.0L 2010-2011 |
| Suzuki SX4 Sport GTS Sedan L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Sport S L4 2.0L 2010-2011 |
| Suzuki SX4 Sport S Sedan L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Sport SE L4 2.0L 2010-2013 |
| Suzuki SX4 Sport SE Sedan L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Sportback L4 2.0L 2010-2013 |
| Suzuki SX4 Sportback L4 2.0L CVT 2010-2013 |
| Suzuki SX4 Crossover (Canada) JA L4 2.0L 2012 |
| Suzuki SX4 Crossover (Canada) JLX L4 2.0L 2012 |
| Suzuki SX4 Crossover (Canada) JX L4 2.0L 2012 |
| Suzuki SX4 J20A 2.0VVT 2007-2015 |
Cross Reference:

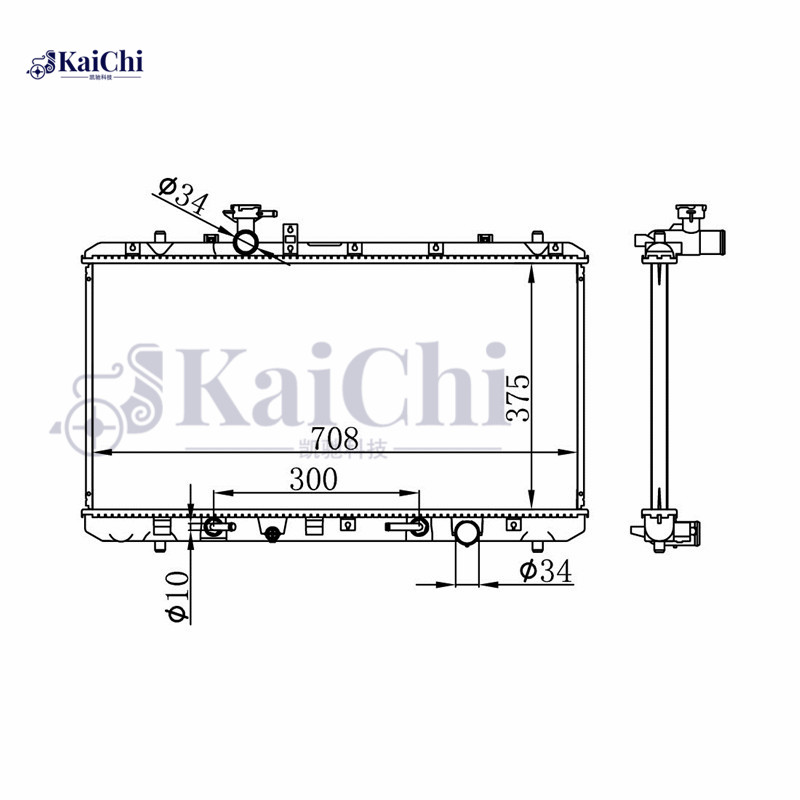

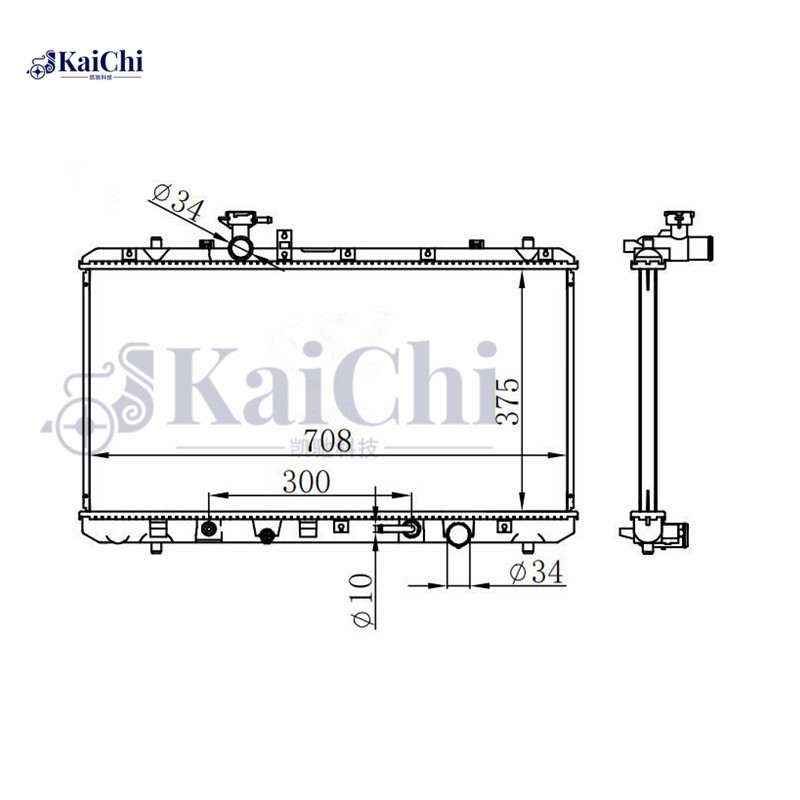

Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2980 |
| DPI | 13287 |
| SPI | CU2980 |
| APDI | 8012980 |
| APDI | 8013287 |
| TYC | 2980 |
| CSF | 3444 |
| DENSO | 221-9419 |
| DENSO Europe | DRM47025 |
| Vista-Pro | 438500 |
| AKS DASIS | 320056N |
| AVA QUALITY COOLING | SZA2128 |
| NISSENS Number | 64205 |
| Partslink | SZ3010138 |
OEM Part Number:
| 1770080J10 |
| 1770054L10 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
