Kaichi Nr.: SZ-024-26
Brand:KaiChi
Radiator Type:Brazed Aluminum Core
Size In Inch:18-11/16 In X 23-1/8 In X 1 In
Size In MM:475mm X 588mm X PA26
Min Order Qty:10pcs
Payment Term: T/T
Incoterm: FOB,CIF
Shipping Ports: Shenzhen or Ningbo in China
Item Specifics:
| Part Type: | Auto Radiator | Brand: | KaiChi |
| Manufacturer Warranty: | 1 Year | Manufacturer Part Number: | SZ-024-26 |

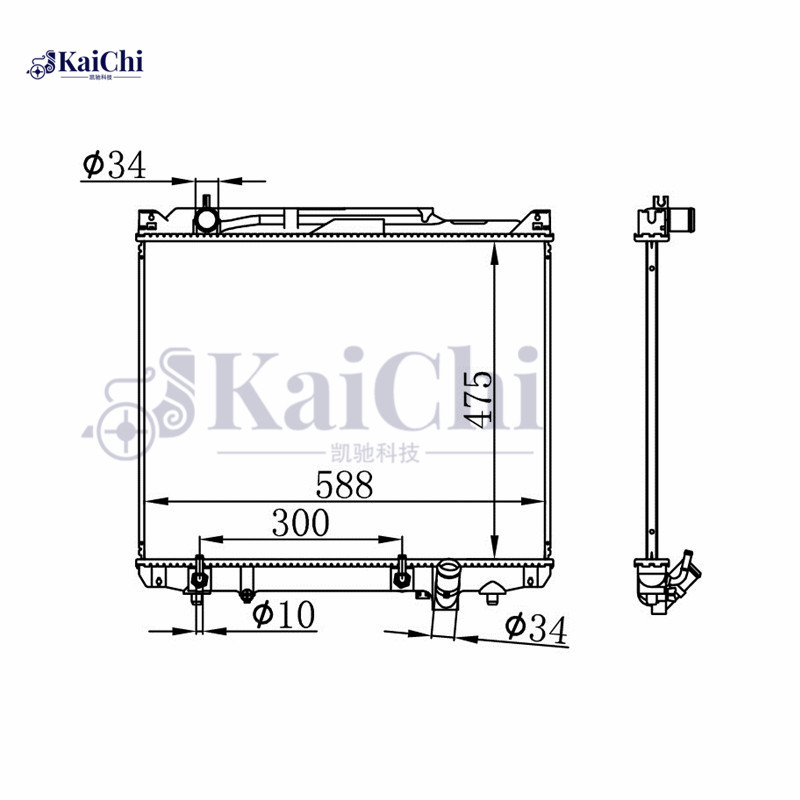

| Height: | 18-11/16 In./475mm | Width: | 23-1/8 In./588mm |
| Thickness: | 1 In./26mm | Inlet Diameter: | 1-3/8 In./34mm |
| Outlet Diameter: | 1-3/8 In./34mm | Tank Material: | Plastic |
| Core Material: | Aluminum | Trans Oil Cooler: | Brass/Concentric |
| Trans Oil Cooler Central Distance: | 11-13/16 In./300mm | Rows: | 1 |
Applications：
| Suzuki XL-7 Base V6 2.7L 2006 |
| Suzuki XL-7 EX V6 2.7L 2004-2005 |
| Suzuki XL-7 LX V6 2.7L 2004-2005 |
| Suzuki XL-7 Premium V6 2.7L 2006 |
| Suzuki Grand Escudo H27A 2.7 VVTI 2003-2005 |
| Suzuki Grand Vitara MK II JB627W H27A 2.7 VVTI 2007-2008 |
Cross Reference:
Cross Reference information is provided as a guide only. Please refer to the Applications, Part Specifications and Drawings to verify fit.
| DPI | 2933 |
| SPI | CU2933 |
| APDI | 8012933 |
| TYC | 2933 |
| CSF | 3005 |
| DENSO | 221-9411 |
| DENSO Europe | DRM47020 |
| Vista-Pro | 434052 |
| NRF | 53576 |
| AKS DASIS | 320038N |
| AVA QUALITY COOLING | SZ2097 |
| NISSENS Number | 641776 |
| Partslink | SZ3010134 |
OEM Part Number:
| 1770052D21 |
| 1770052D30 |
| 1770052D31 |
1.We Stand Behind Every Product We Sell.
2.All Of Our Brand New Items Come With 1 Year Guarantee.
3.For The Demaged, Broken,Defective, Or Other Issues, The Buyer Provide The Photo Proofs For Our Checking.Once Confirmed By Our Technical Team,We Will Produce and Replace The Defective Items In Next Order.
4.We Will Refund The Purchase Price In Next Order If Buyer Prefers A Refund At The Purchase Order Cost.
